S17 Figma import report

Show what came across from a Figma file and what was approximated.
Purpose Show what came across from a Figma file and what was approximated.
SRS EXP-5
Layout Modal 640 × 560
Contents Stepper (Connect, Choose file, Import, Report). Report step: tiles 4 × 136 × 64 (Pages 3, Nodes 4 812, Components 64, Variables 120); bar “Approximated 2.4 %” against a target mark at 5 %; issue table (rows 32: severity icon, node name, issue “Blend mode plus-darker mapped to multiply”, “Show on canvas” link); filters (All, Approximated, Skipped). Footer: “Save report”, “Open design” primary.
States Token prompt (personal access token field with “stored in SecretStorage” note); importing (progress per step); failed (error with retry).

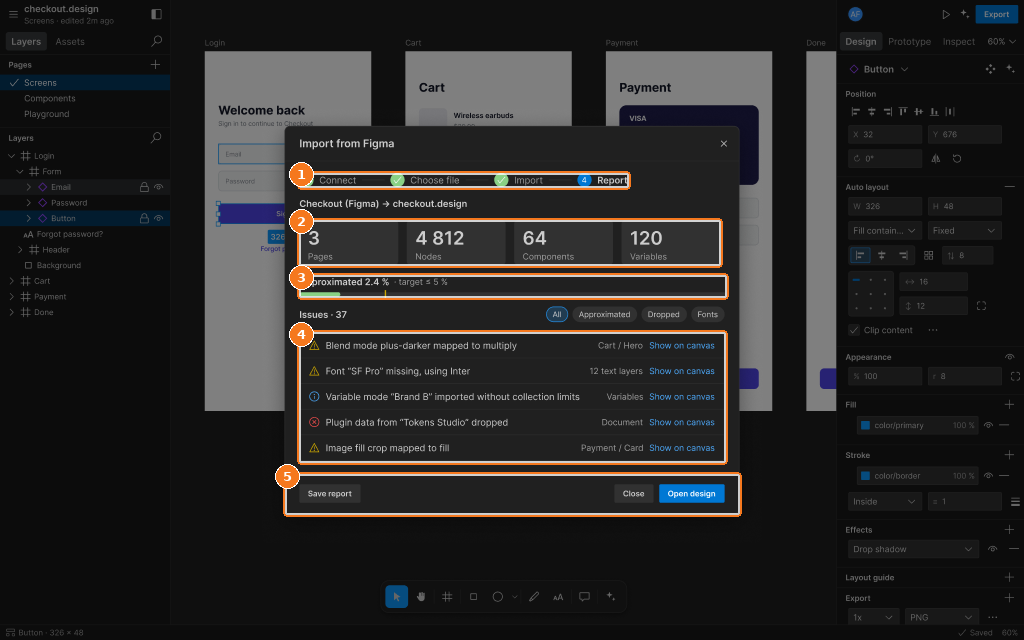

Figma frame S17 (annotated)

S17 annotated screenshot
S17 annotated screenshot

Callouts:

  1. Stepper: Connect, Choose file, Import, Report
  2. Counts: pages, nodes, components, variables
  3. Approximated 2.4 % against the 5 % target
  4. Issue table with Show on canvas
  5. Save report · Close · Open design
